Replacement Diamond Segments for Adjustable Hole Cutter and Drill Disc

Replacement Diamond Segments for Adjustable Hole Cutter and Drill Disc

Product Description:

When your Adjustable Hole Cutter begins to lose its edge, don’t replace the tool—just replace the segments. Our diamond cutting tips are engineered with a high concentration of industrial grit, bonded for maximum durability in the toughest materials.

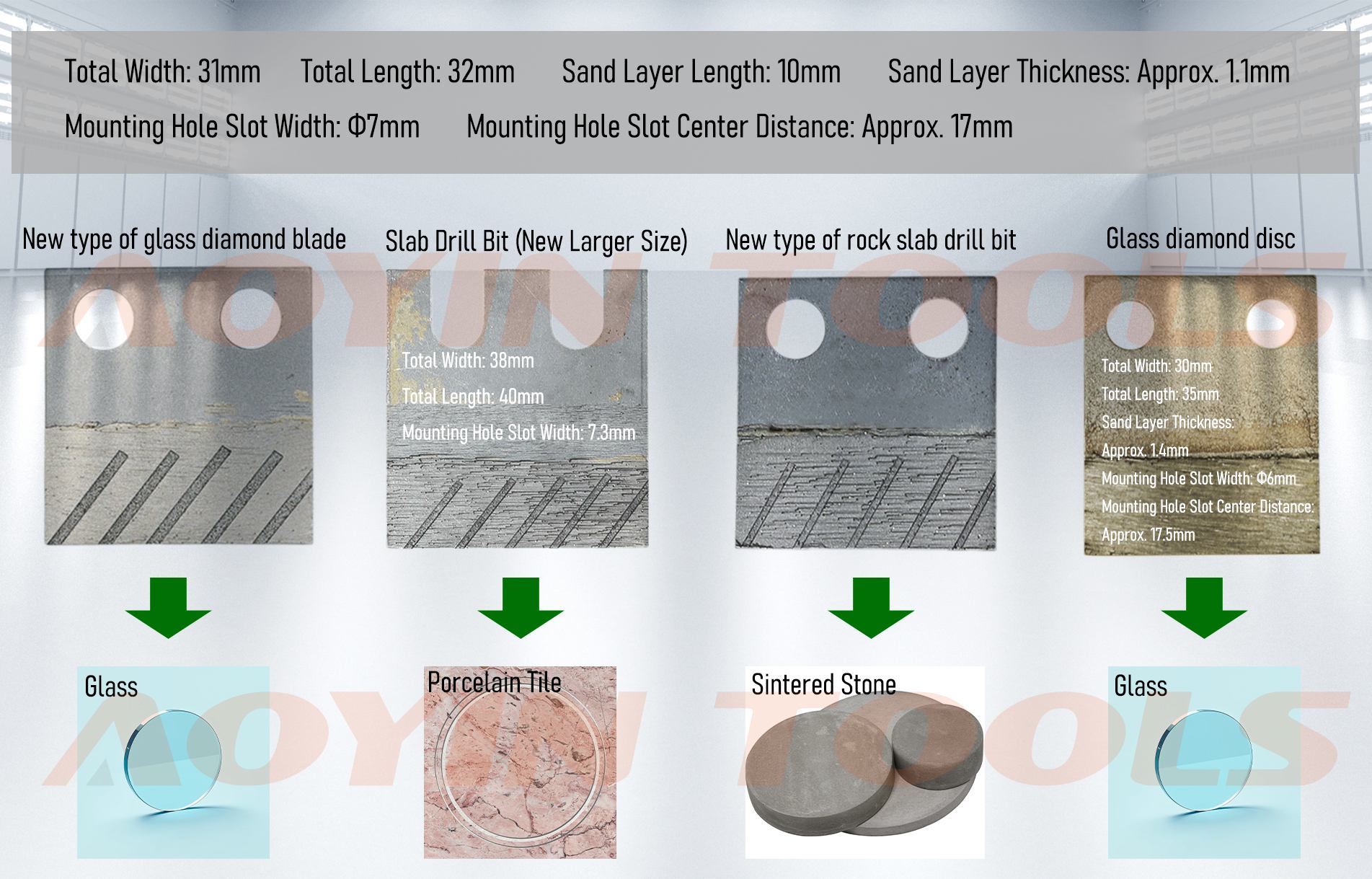

Choose the Right Segment for Your Material:

Glass Series: Specifically bonded for brittle transparency. The Standard version is perfect for daily tasks, while the Advanced New-Gen tips feature a refined diamond matrix to prevent micro-cracks during high-speed drilling.

Sintered Stone Series: Built for extreme density (Mohs 7-9).

Our Regular slate segments handle standard porcelain with ease. For professional contractors working on 20mm+ thick countertops, the Heavy Duty XL (Enlarged) version provides more surface contact for faster material removal and longer tool life.

Pro Maintenance Tips

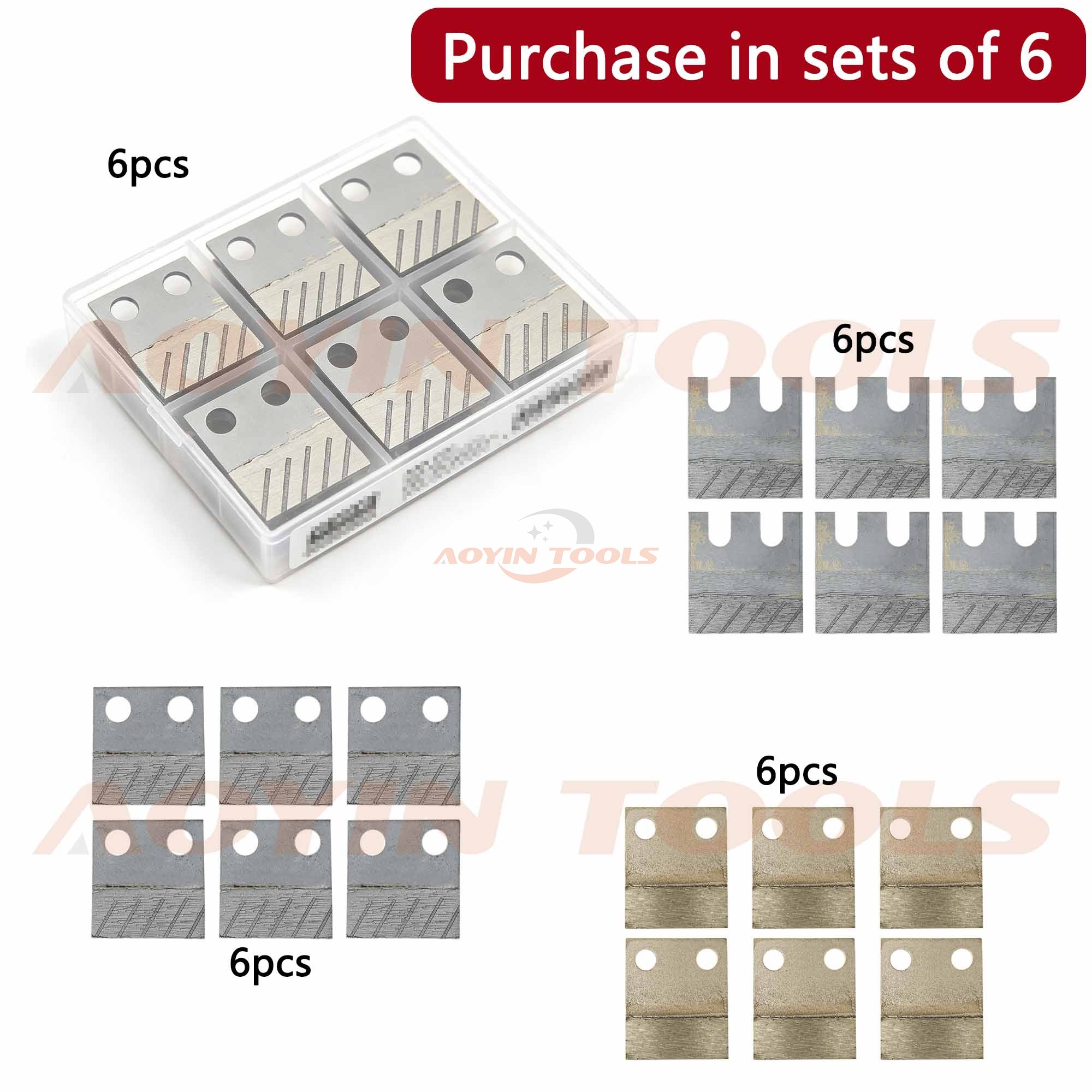

• Set Replacement: Always replace all segments as a full set (6 pieces) to maintain disc balance.
• Sharpening: If cutting speed slows, briefly drill into a soft abrasive stone to re-expose fresh diamond grit.

Product Highlights:

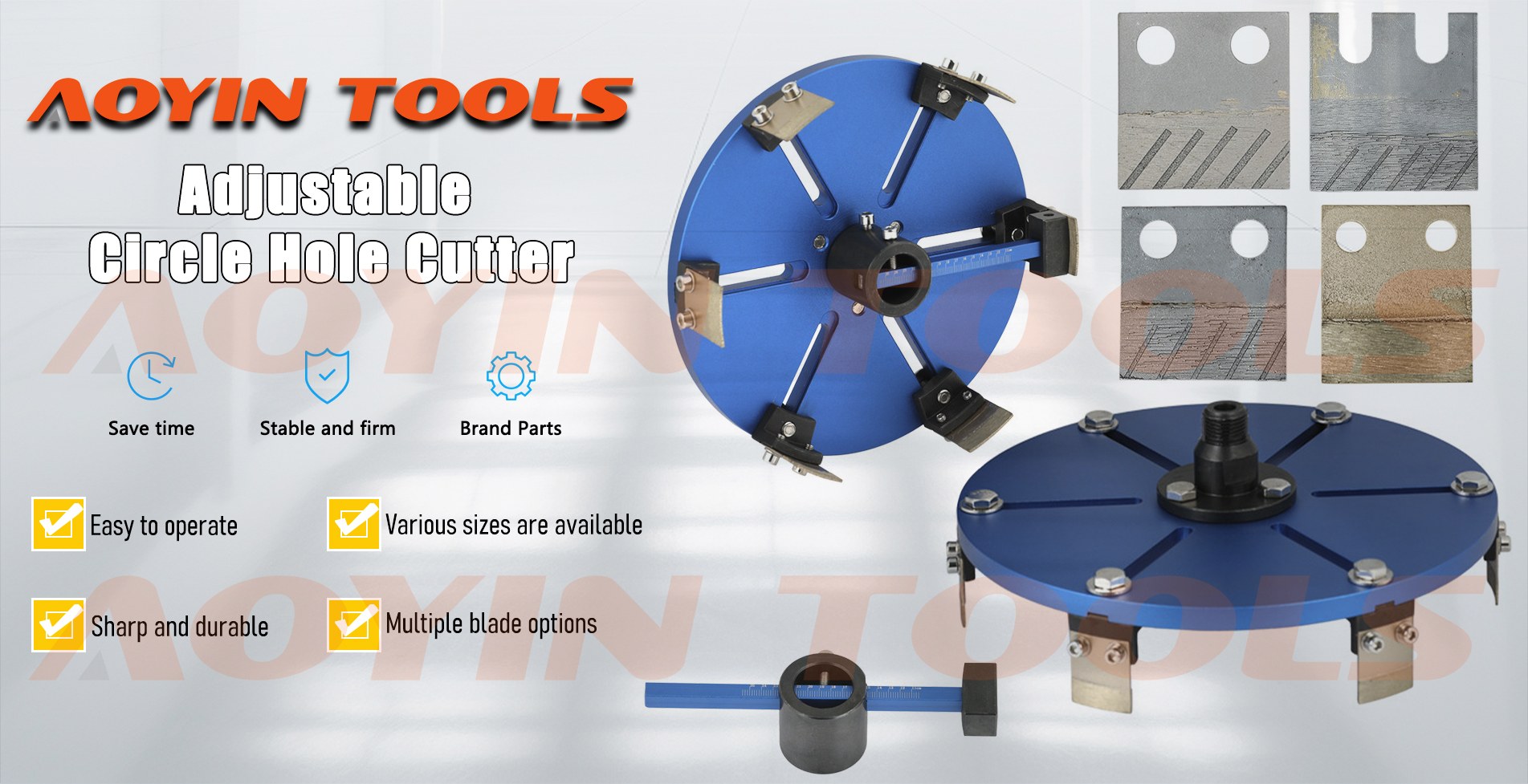

Equipped with a laser-etched integrated measurement scale, this Adjustable Diamond Hole Cutter ensures every cut is spot-on without manual measurement errors. Whether used as a specialized sintered stone hole saw for ultra-hard slabs or a glass circle cutter for architectural panels, the industrial-grade diamond grit delivers a perfectly smooth, chip-free finish.

Why Choose the Adjustable Diamond Hole Cutter?

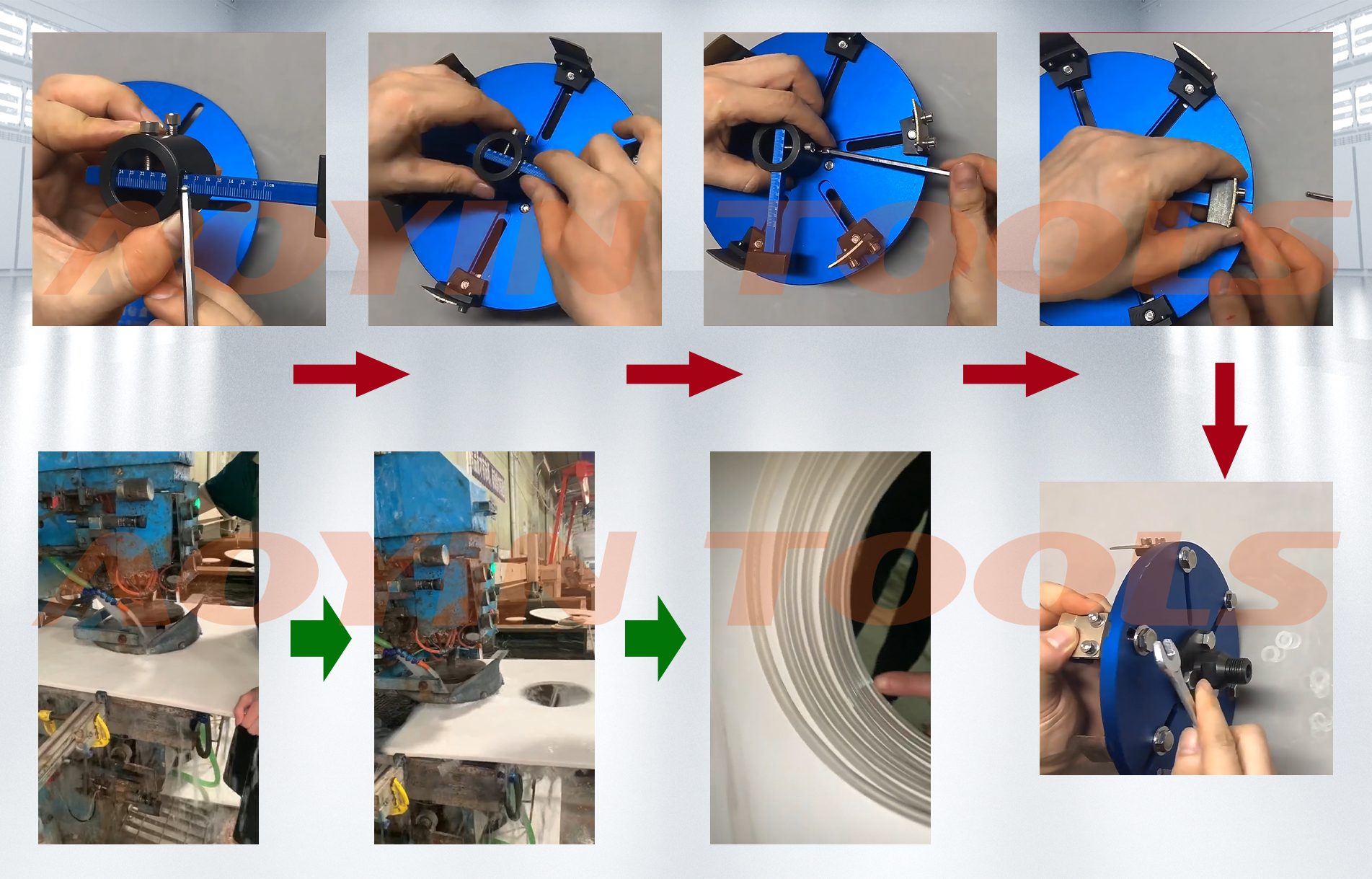

• Integrated Measurement Scale: No more manual measuring errors. The innovative adjustment rod features a clear laser-etched scale, allowing you to set the precise diameter (up to 362mm) in seconds.
• Engineered for Sintered Stone: Specifically optimized for high-density materials. The premium diamond grit ensures smooth entry and prevents edge blowout on expensive sintered stone or slate surfaces.
• Thickened Stable Disc Design: The reinforced circular chassis minimizes vibration during high-speed rotation, ensuring the cutter stays centered for a perfectly round finish every time.
• Versatile Shank Compatibility: Available in both Threaded and Straight shanks to fit most standard drill machines and glass processing equipment.

FAQ - Frequently Asked Questions:

Q1: Why are there different versions for glass and sintered stone?

A: Different materials require different diamond bondings. The Glass Series uses a smoother matrix to prevent cracking in transparent materials. The Sintered Stone Series is engineered with a harder metal bond and higher diamond concentration to withstand the extreme density and heat of ultra-hard slate and porcelain tiles.

Q2: What is the difference between the Regular and XL (Enlarged) Sintered Stone segments?

A: The Heavy Duty XL (Enlarged) version has a wider and thicker cutting surface. This allows for faster material removal (higher drilling speed) and offers a significantly longer service life when working on thick, industrial-grade countertops compared to the Regular version.

Q3: Is the "Advanced New-Gen" glass segment worth the upgrade?

A: Absolutely. The Advanced New-Gen version features a refined diamond grit size. It is designed to minimize micro-chipping on the exit side of the hole, which is critical for high-end architectural glass projects where aesthetics are paramount.

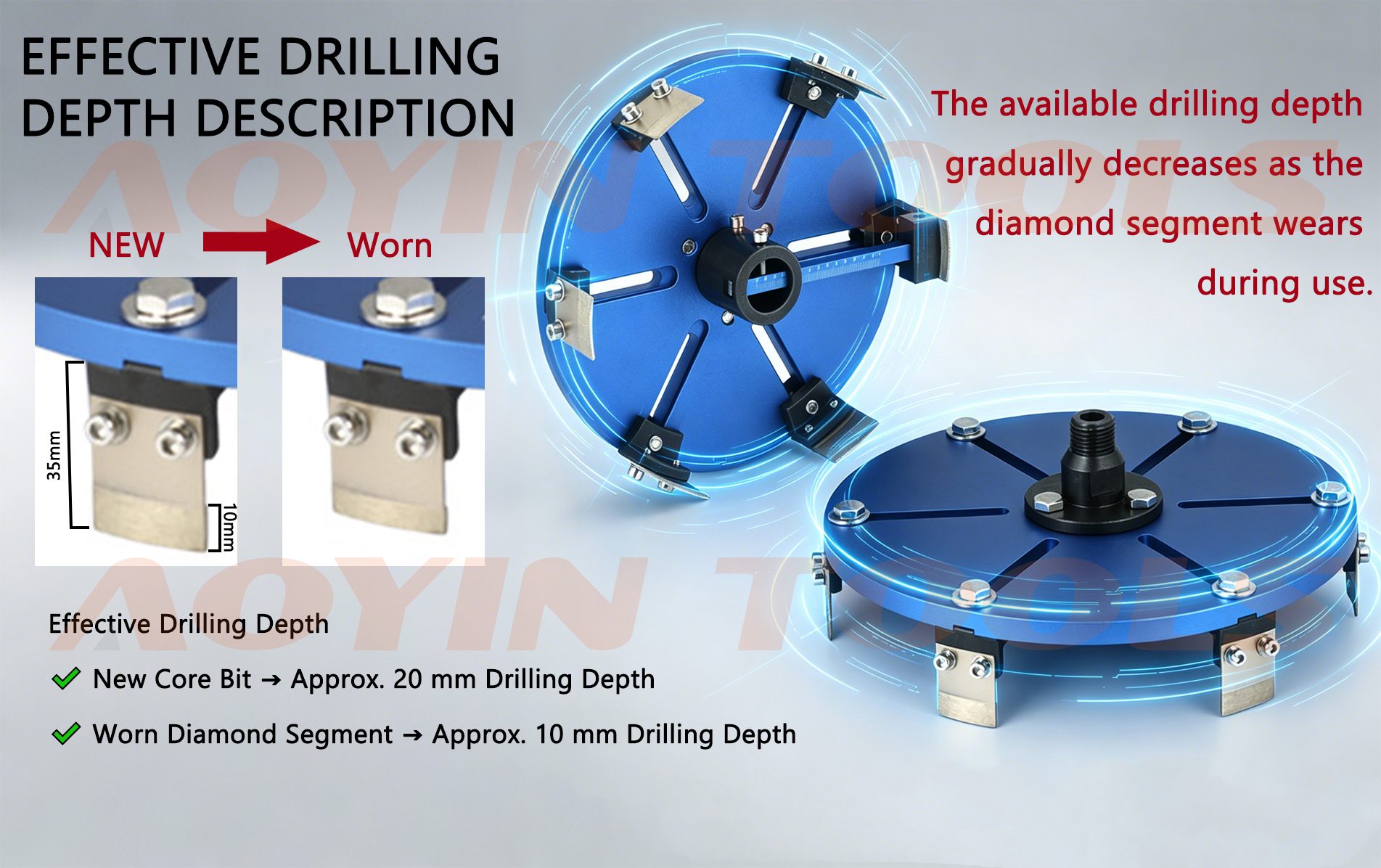

Q4: How do I know when it is time to replace a segment?

A: You should replace your segments if you notice a significant drop in drilling speed, excessive heat buildup, or if the metal bond has worn down to the disc level. Replacing all 6 pieces at once ensures the disc remains balanced and prevents uneven wear on your tool.

Q5: Are these segments compatible with other brands of adjustable cutters?

A: These segments are designed with a standard bolt-on mounting system. While they fit most professional-grade adjustable drill discs on the market, we recommend verifying your mounting hole spacing before purchase. (Each segment has a standard 35mm height).

Q6: Can I mix glass and sintered stone segments on the same disc?

A: No. For safety and precision, you must always use a full set (all segments) of the same type. Mixing different segments will cause severe vibration, unbalance the disc, and likely damage your material or machine.
