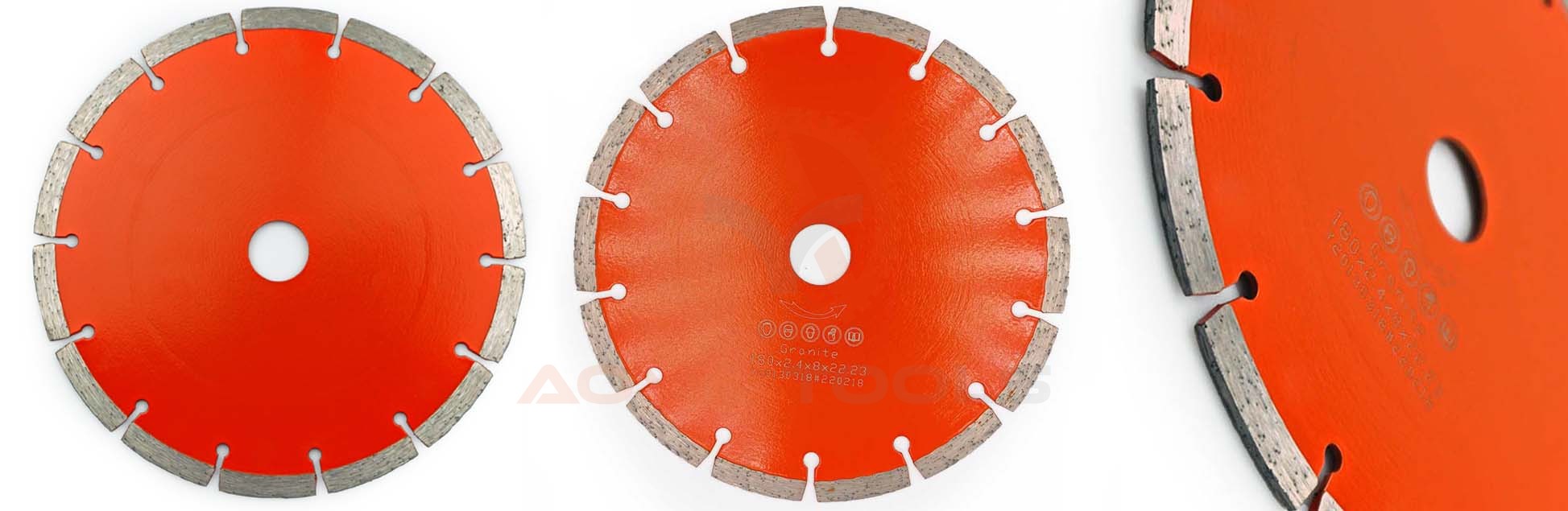

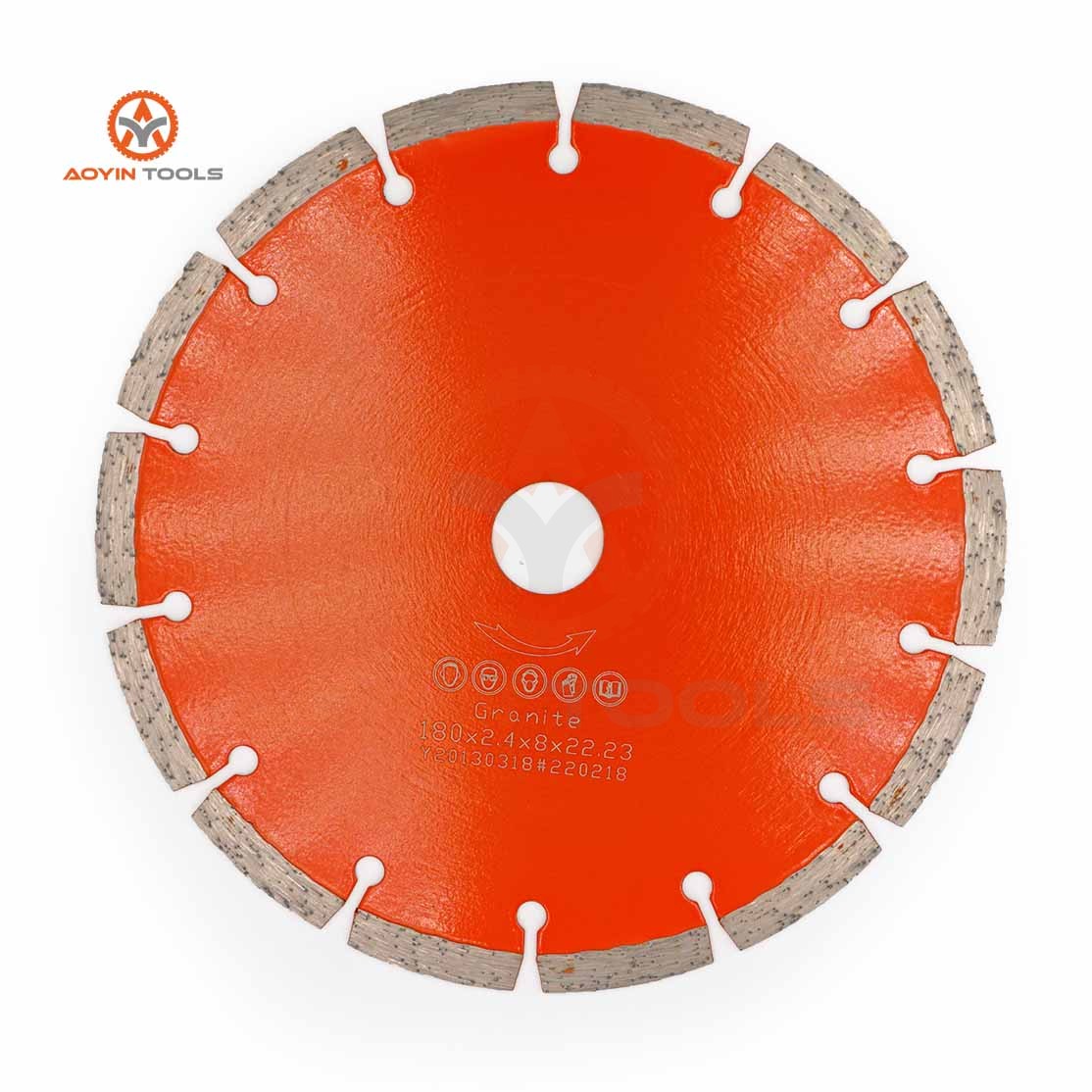

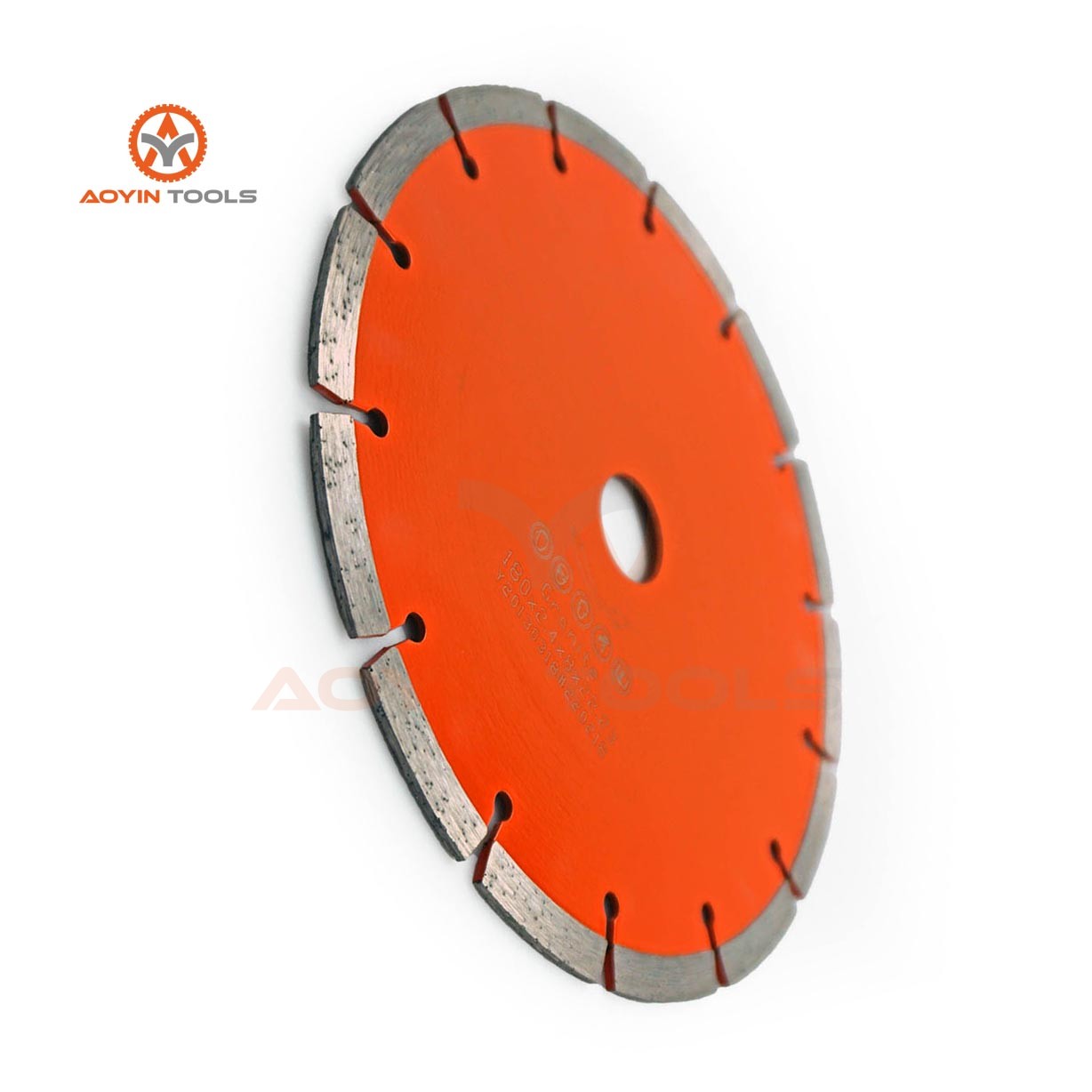

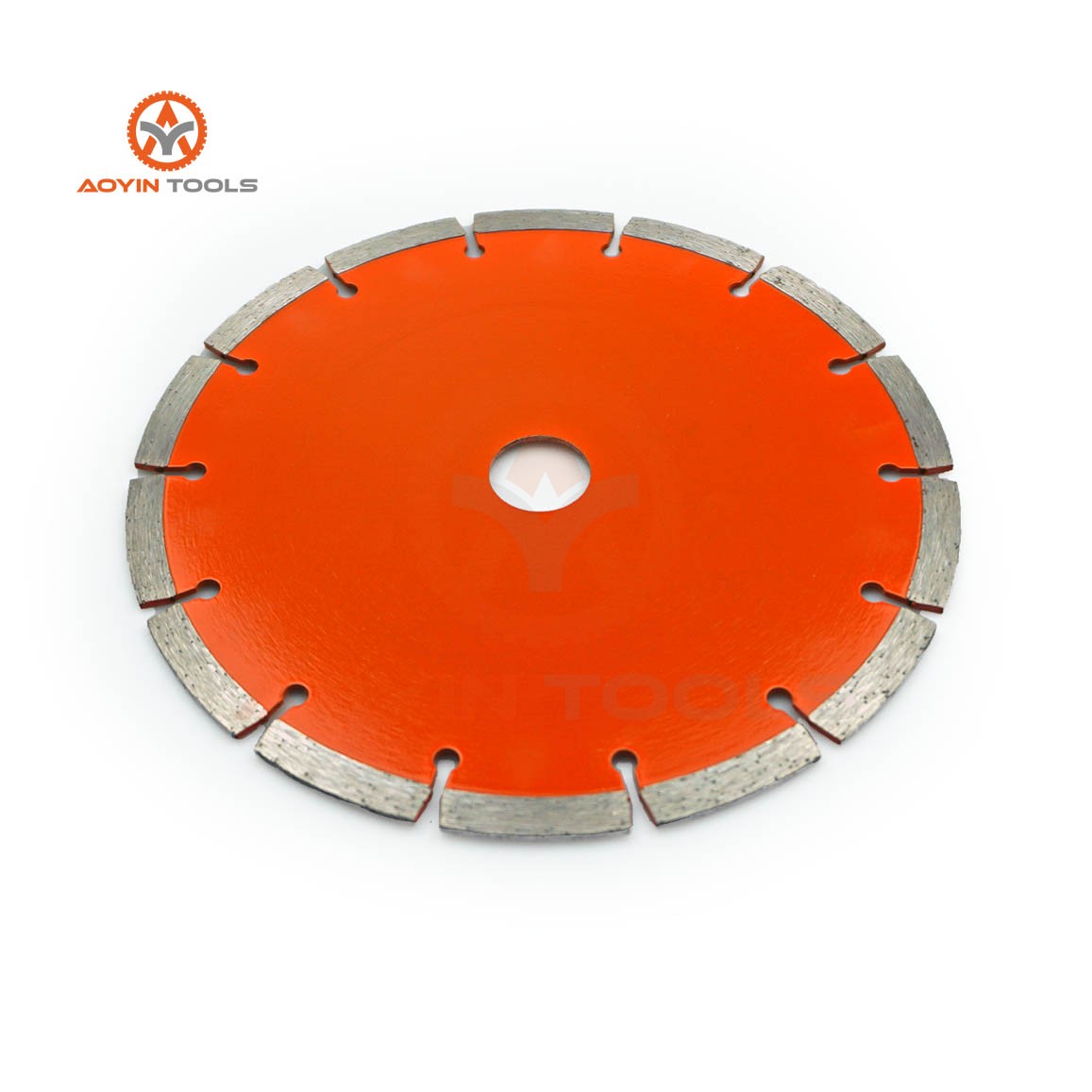

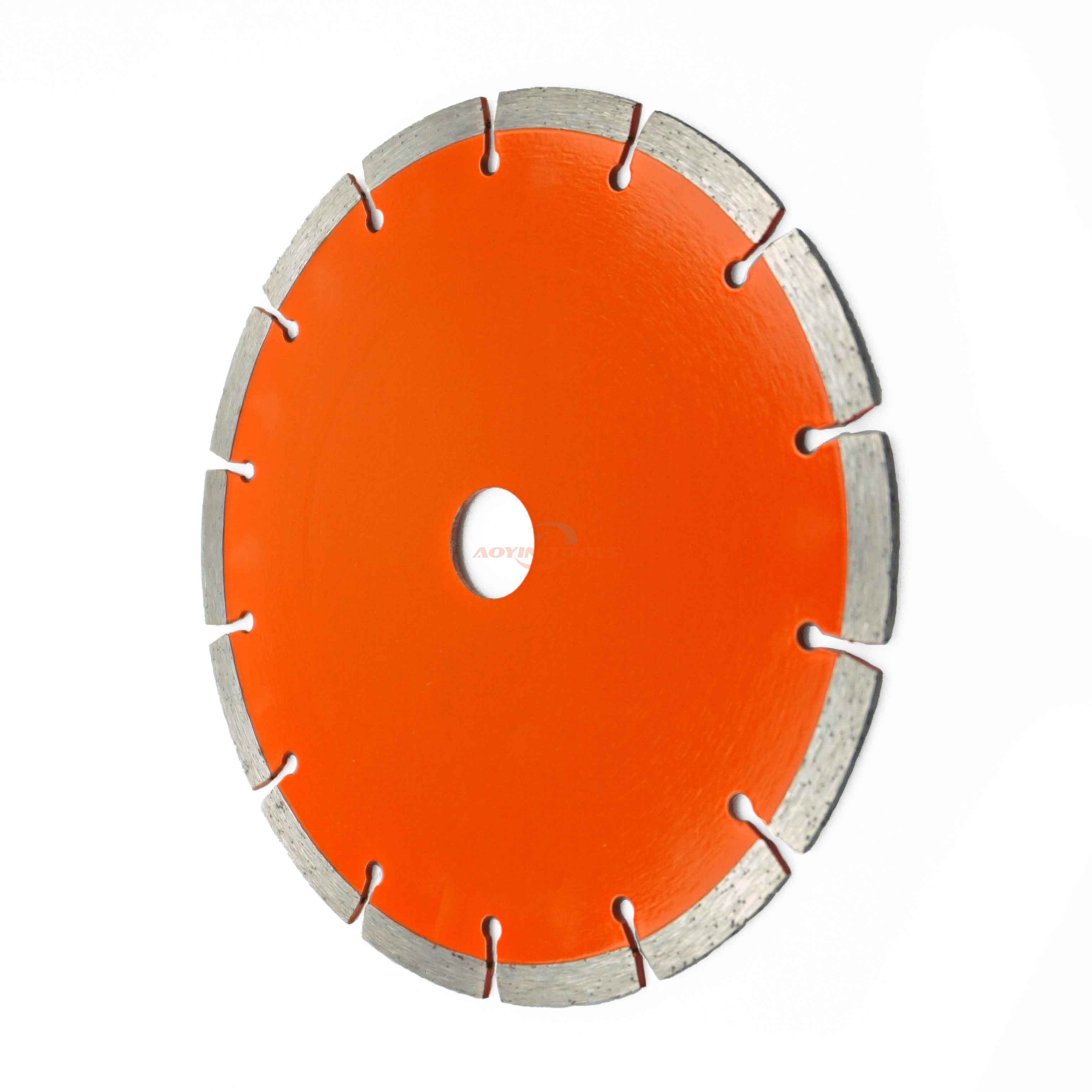

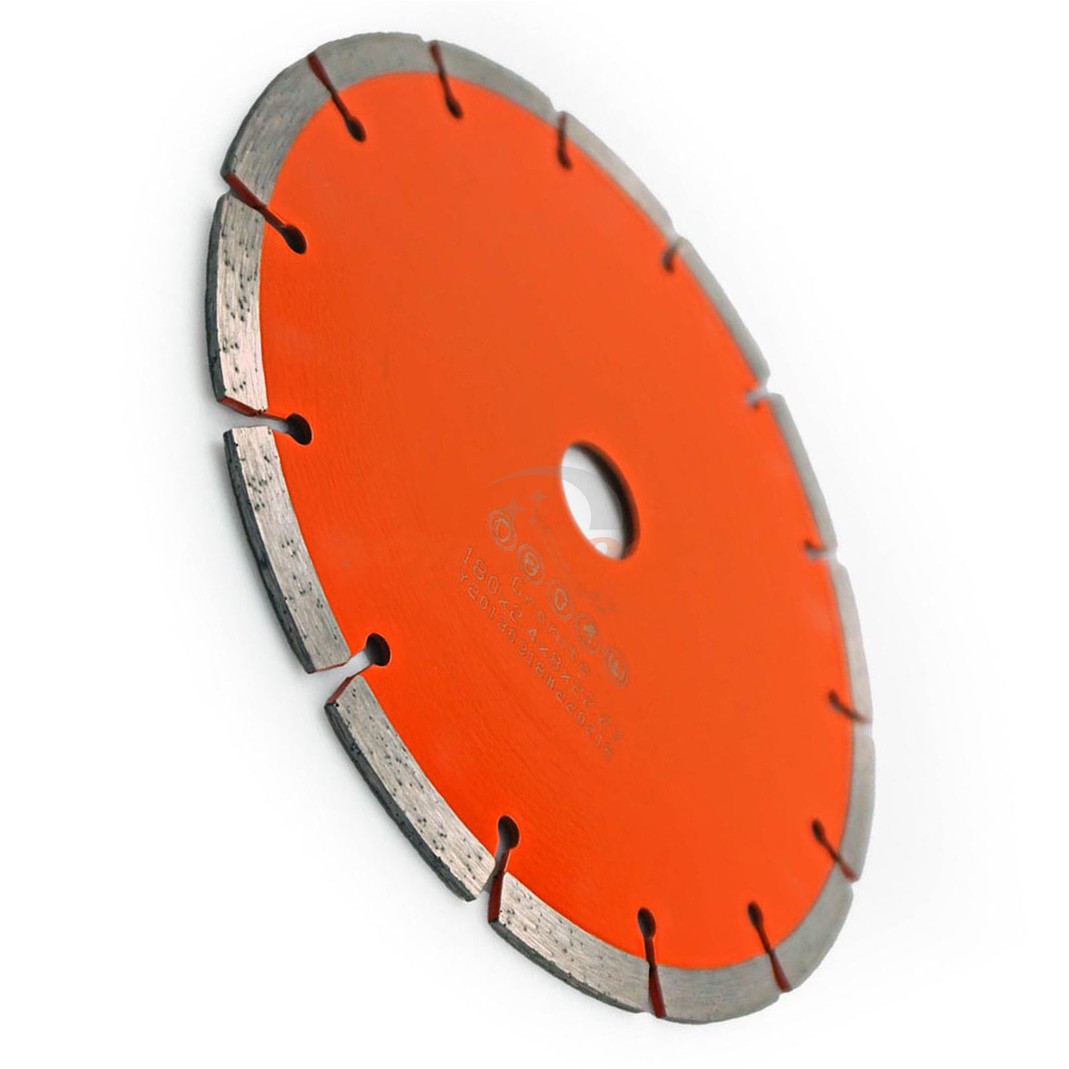

Diamond Sintered Segmented Type Blade for Granite

This blade can be customized or available for wholesale, providing flexibility for bulk orders. With our focus on delivering top-notch customer service and a seamless buying experience, we aim to meet the demands of wholesalers and ensure their satisfaction.Our Diamond Sintered Segmented Type Blade for Granite offers exceptional cutting performance and durability, making it an ideal choice for granite cutting projects.

  • Order(MOQ) :

    20 piece
  • Shipping Port :

    XIAMEN
  • Lead Time :

    15 days
  • Brand Name :

    OEM
  • Process Type :

    HOT PRESS
  • Customized support :

    OEM
New Products

Diamond Sintered Segmented Type Blade for Granite



Product Features:

Our diamond sintered segmented type blade for granite is engineered to provide outstanding cutting performance and durability.   The sintered segments ensure maximum diamond exposure, resulting in efficient and precise cuts through granite.   With a segment height of 10mm, this blade allows for deep cuts and extended usage life.   It is the perfect tool for professional contractors and DIY enthusiasts involved in granite cutting projects.

diamond sintered segmented type blade for granite

Key Product Parameters:

Diameter Bore Segment dimensions(mm)
Inch Metric(mm) size(mm) Thickness Height
4.5 115 22.23 2.0 10
5 125 22.23 2.0 10
6 150 22.23 2.2 10
7 180 22.23 2.4 10
8 200 22.23 2.4 10
9 230 22.23 2.6 10
Other sizes as request are available.



Product and Company Advantages:

By choosing our Diamond Sintered Segmented Type Blade, you can benefit from the following advantages:

- Superior Cutting Performance: The sintered segments ensure maximum diamond exposure, providing excellent cutting performance and unrivaled precision on granite materials.

- Long-lasting Durability: This blade is manufactured with high-quality materials, ensuring its durability and ability to withstand heavy usage without compromising performance.

- Customizable and Wholesale Options: We offer customization options and competitive wholesale pricing, catering to different customer requirements and bulk orders.

- Excellent Customer Service: Our dedicated customer service team is committed to providing prompt assistance and ensuring your complete satisfaction throughout the buying process.

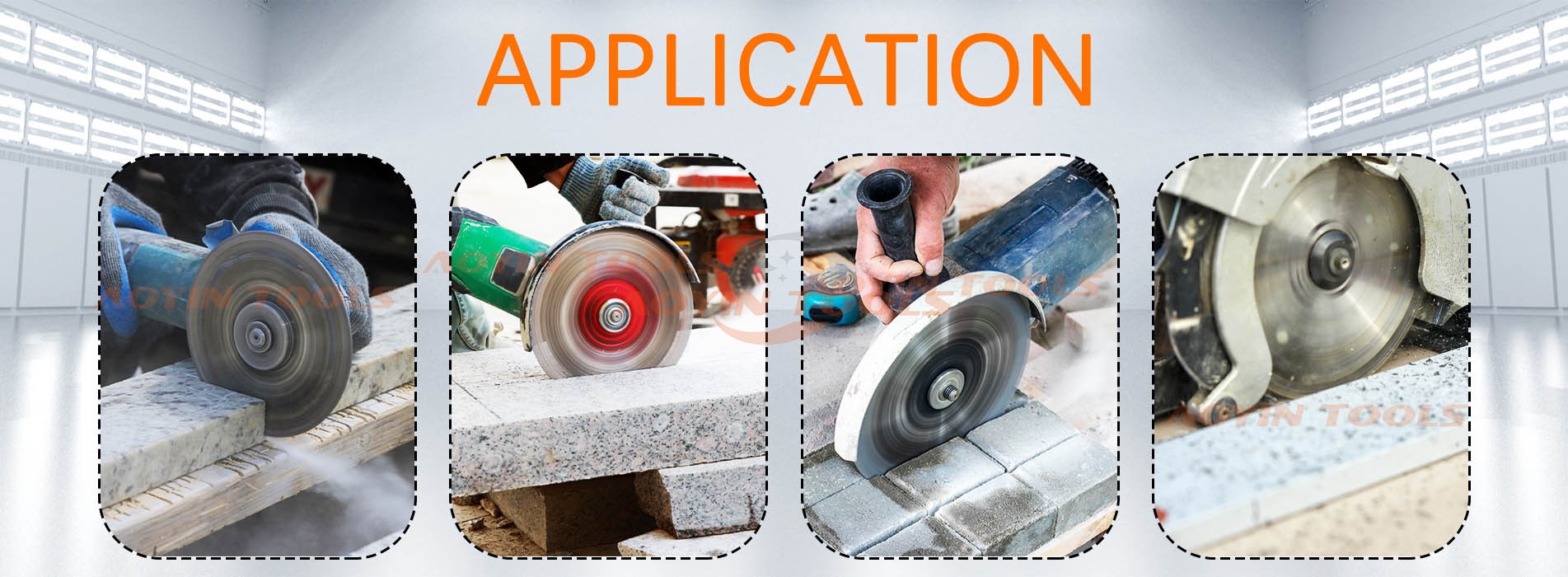

Application Areas:

FAQ:

Q1: Can I use this blade on wet cutting applications?

A: Yes, our Diamond Sintered Segmented Type Blade is suitable for both wet and dry cutting applications on granite.

Q2: What is the recommended RPM for this blade?

A: We recommend using this blade at a maximum RPM of 12,000 for optimal performance and safety.

Q3: Can I use this blade with a handheld grinder?

A: Yes, this blade is designed to be compatible with handheld grinders with a 22.23mm arbor hole diameter.

Q4: Is this blade exclusively for cutting granite or can it be used on other materials?

A: While this blade is specifically designed for cutting granite, it may also be used for other hard materials such as hard tile or engineered stone.   However, we recommend consulting our experts or using a blade specifically designed for those materials for the best results.

If you have any more questions or need further assistance, our knowledgeable customer support team is ready to help.
