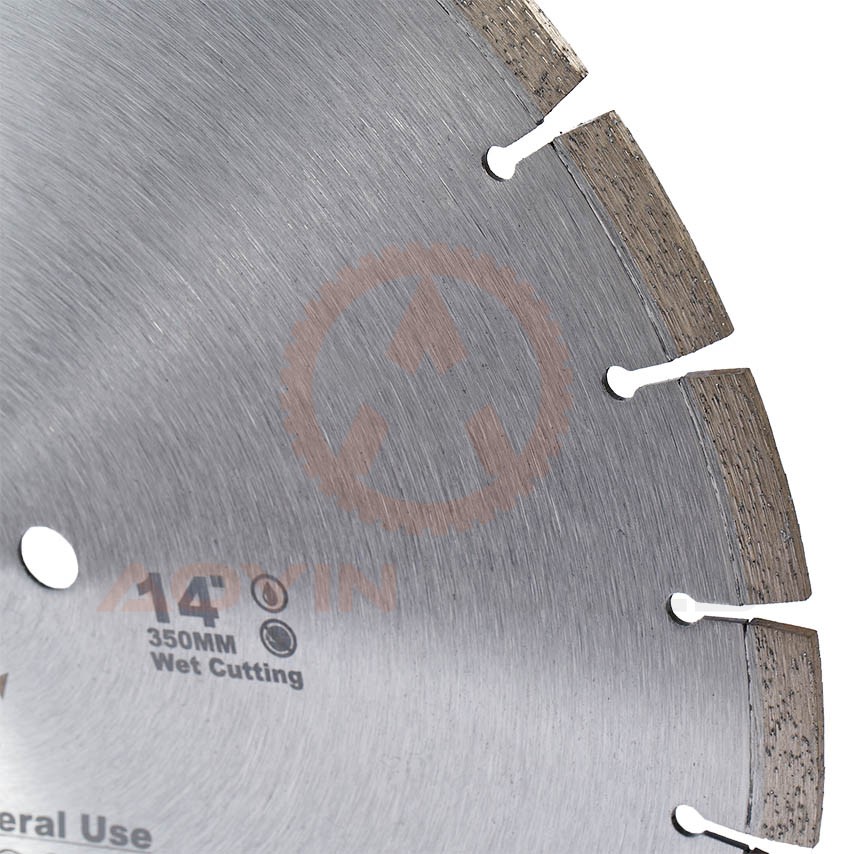

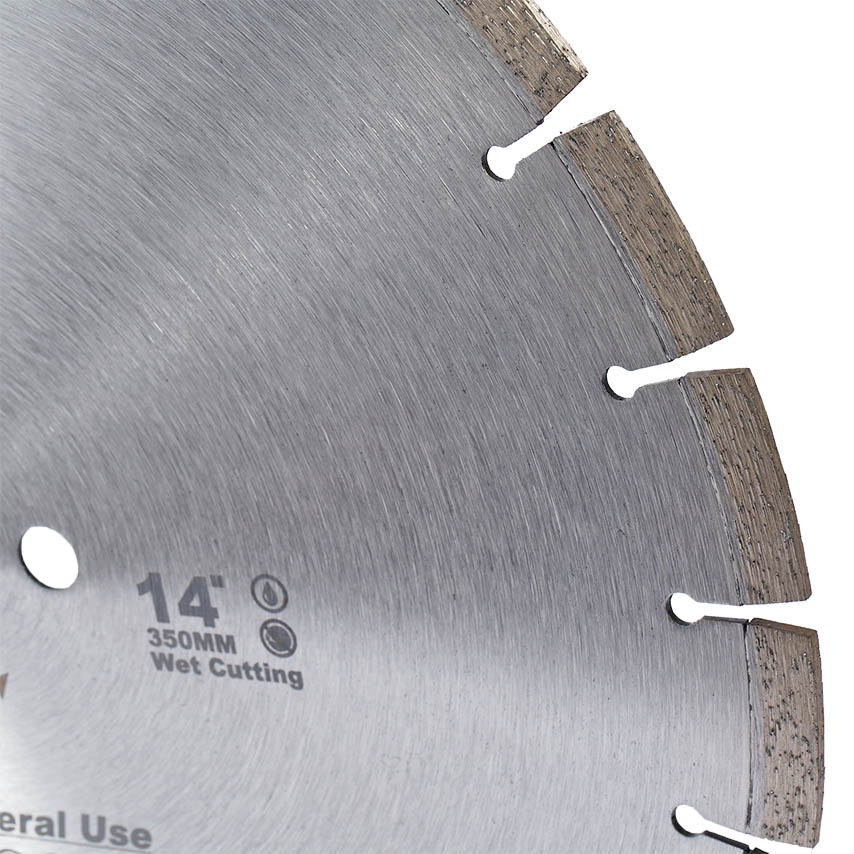

Laser Segmented Saw Blade For Cured Concrete Stone and Hard Material

Our laser segmented saw blade for cutting cured concrete, stone, and hard materials. This advanced and high-performance blade features ultrafine alloy bond technology, making it suitable for cutting various hardness levels of reinforced concrete, hard bricks, granite, and other hard building materials. With its exceptional capabilities, this laser welding saw blade is a versatile tool for professionals in the construction and masonry industries.

  • Order(MOQ) :

    5 pcs
  • Shipping Port :

    Xiamen Port
  • Lead Time :

    7-20 days after payment recieved
  • Brand Name :

    OEM
  • Process Type :

    Laser Welded
  • Customized support :

    Visualization Service
New Products

Laser Segmented Saw Blade For Cured Concrete Stone and Hard Material



Product Description:

Our laser segmented saw blade is designed for precision cutting of cured concrete, stone, and hard materials. With our independent research and development of ultrafine alloy bond technology, this blade offers superior cutting performance across a range of hardness levels.  It is suitable for cutting reinforced concrete, hard bricks, granite, and other hard building materials. Available in sizes ranging from D125 to D600mm, this blade is compatible with angle grinders (D125-230mm) and handheld saw machines, table saw machines, and road saw machines under 18KW (D300-600mm).   Additionally, a sandwich silent steel core option is available.



Product Parameters:

- Blade Type: Laser segmented saw blade

- Bond Technology: Ultrafine alloy bond technology

- Application: Suitable for cutting cured concrete, stone, and hard materials

- Size Range: D125-230mm (angle grinder) | D300-600mm (handheld saw machines, table saw machines, road saw machines under 18KW)

DIAMETER SEGMENT DIMENSION BORE SIZE
L T W N
105 30 2.0 10 8 22.23/25.4 (VARIOUS BORE SIZE UPON REQUEST)
115 30 2.0 10 9
125 32 2.2 12 9
150 32 2.2 12 11
180 40 2.4 12 14
230 40 2.8 12 15
300 40 3.2 12 20
350 40 3.2 12 24
400 40 3.6 12 28
450 40 4.0 12 32
500 40 4.0 12 36
600 40 4.2 12 42



Product Highlights:

1.   Superior Cutting Performance: Our laser segmented saw blade, powered by ultrafine alloy bond technology, excels in cutting various hardness levels of reinforced concrete, hard bricks, granite, and hard building materials.

2.   Versatile Compatibility: The D125-230mm size range is designed for use with angle grinders, while the D300-600mm size range is compatible with handheld saw machines, table saw machines, and road saw machines under 18KW.

3.   Sandwich Silent Steel Core: With the option of a sandwich silent steel core, this blade offers reduced noise and vibrations during cutting operations, providing a more comfortable work environment.

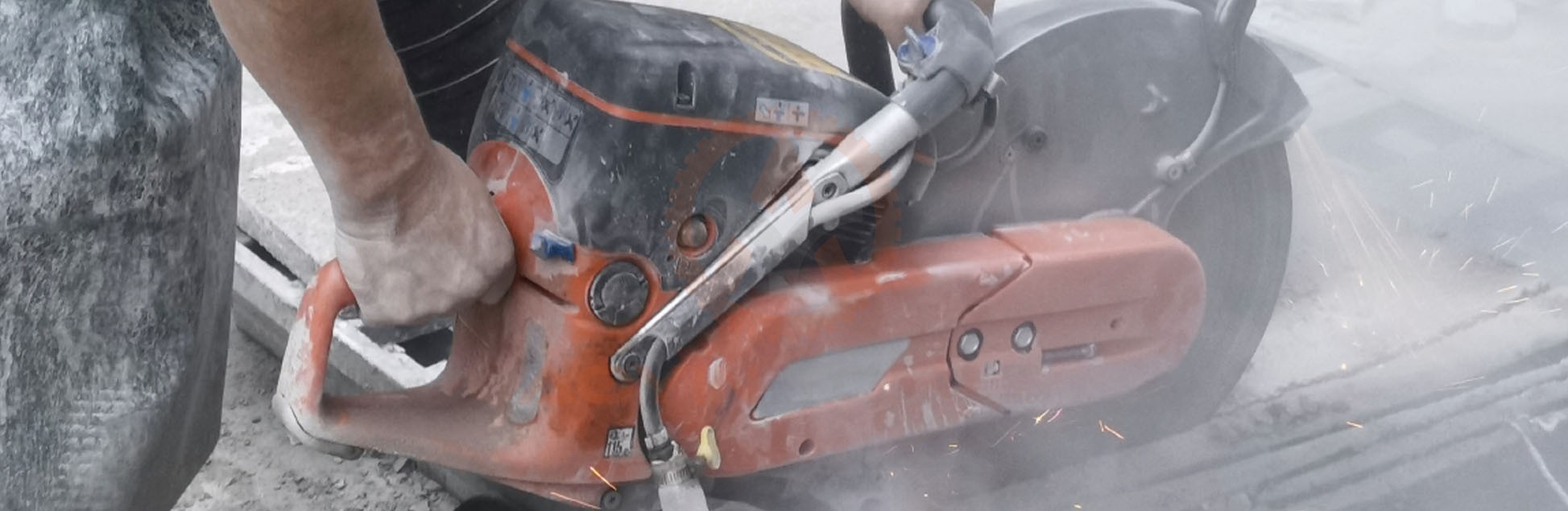

Application Areas:

The laser segmented saw blade is suitable for a wide range of applications in the construction and masonry industries.   It is ideal for cutting cured concrete, stone, and hard materials, making it essential for tasks such as road construction, renovation projects, and the installation of hard building materials.   This blade is a valuable tool for contractors, masons, and construction professionals.

Application Areas

Company Service Advantage:

As a trusted provider of cutting solutions, we are dedicated to delivering excellent products and services to our customers.   Our team of experts provides personalized assistance and guidance, ensuring that you find the right tools for your specific cutting needs.   We prioritize prompt and reliable shipping services to ensure timely delivery of your orders.   Additionally, we offer comprehensive after-sales support, addressing any inquiries or concerns you may have, ensuring your satisfaction with our products.





FAQ - Frequently Asked Questions:

Q1: Can this laser segmented saw blade cut different hardness levels of materials?

A1: Absolutely.   Our blade, featuring ultrafine alloy bond technology, is specifically designed to cut various hardness levels of reinforced concrete, hard bricks, granite, and hard building materials.

Q2: What machines are compatible with this saw blade?

A2: The D125-230mm size range is suitable for use with angle grinders.   The D300-600mm size range is compatible with handheld saw machines, table saw machines, and road saw machines under 18KW.

Q3: Does this blade offer reduced noise and vibration during cutting?

A3: Yes, for the D300-600mm size range, a sandwich silent steel core option is available.   This reduces noise and vibrations, providing a more comfortable and productive work environment.
